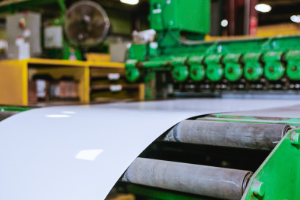

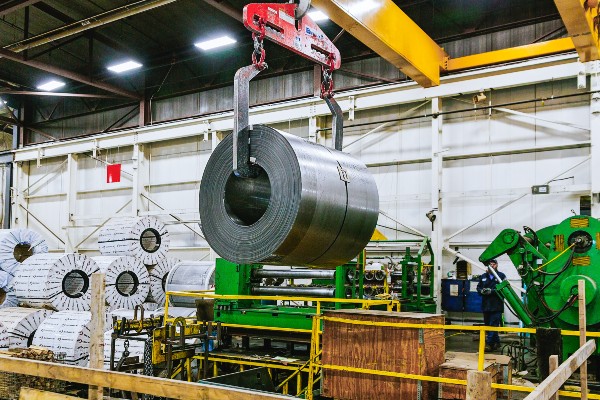

Coil Processing

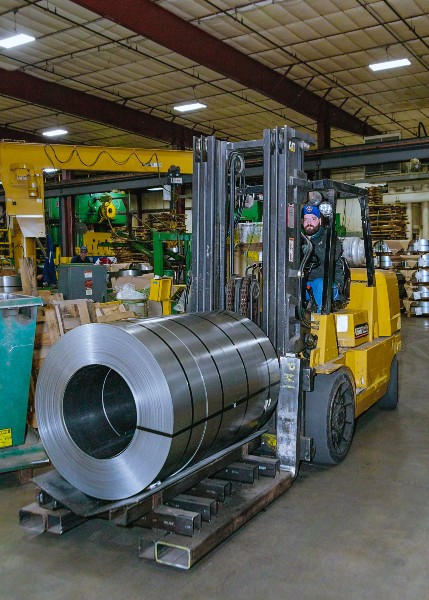

PMI has master coil processing to provide the ultimate value.
  • Cincinatti 60” Slitter, 45,000 lbs max coil weight
  • Herr Voss 60″ Cut-to-Length Coil Line
  • and more!

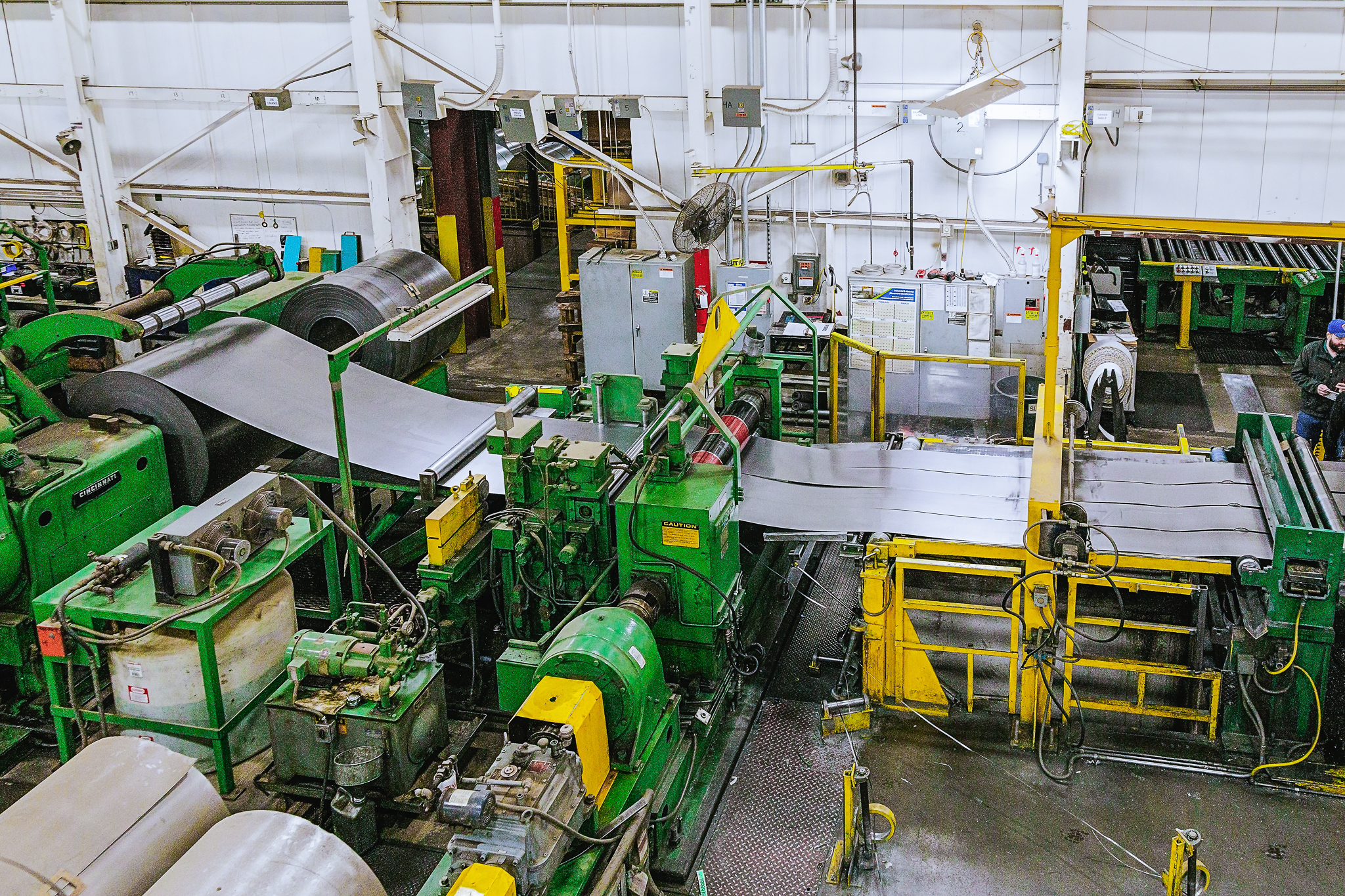

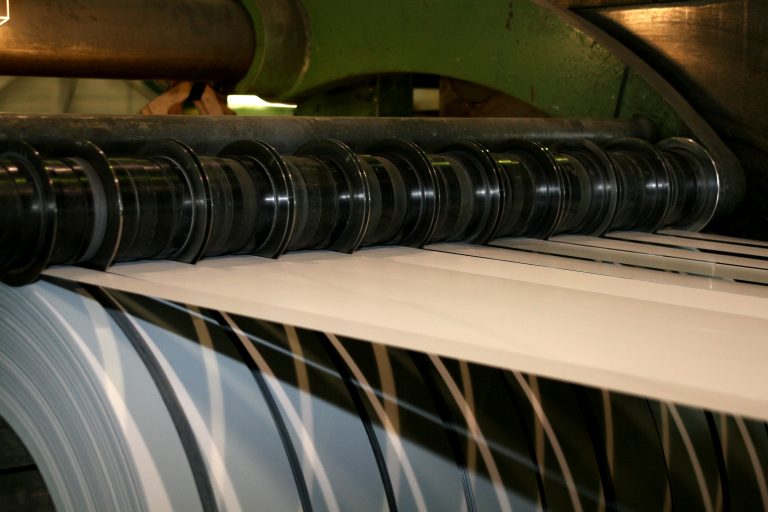

Slitting


Master coil slitting up to 60″ and 45,000 lbs, and gauges from .008″ to .120″.
  • Cincinatti 60″

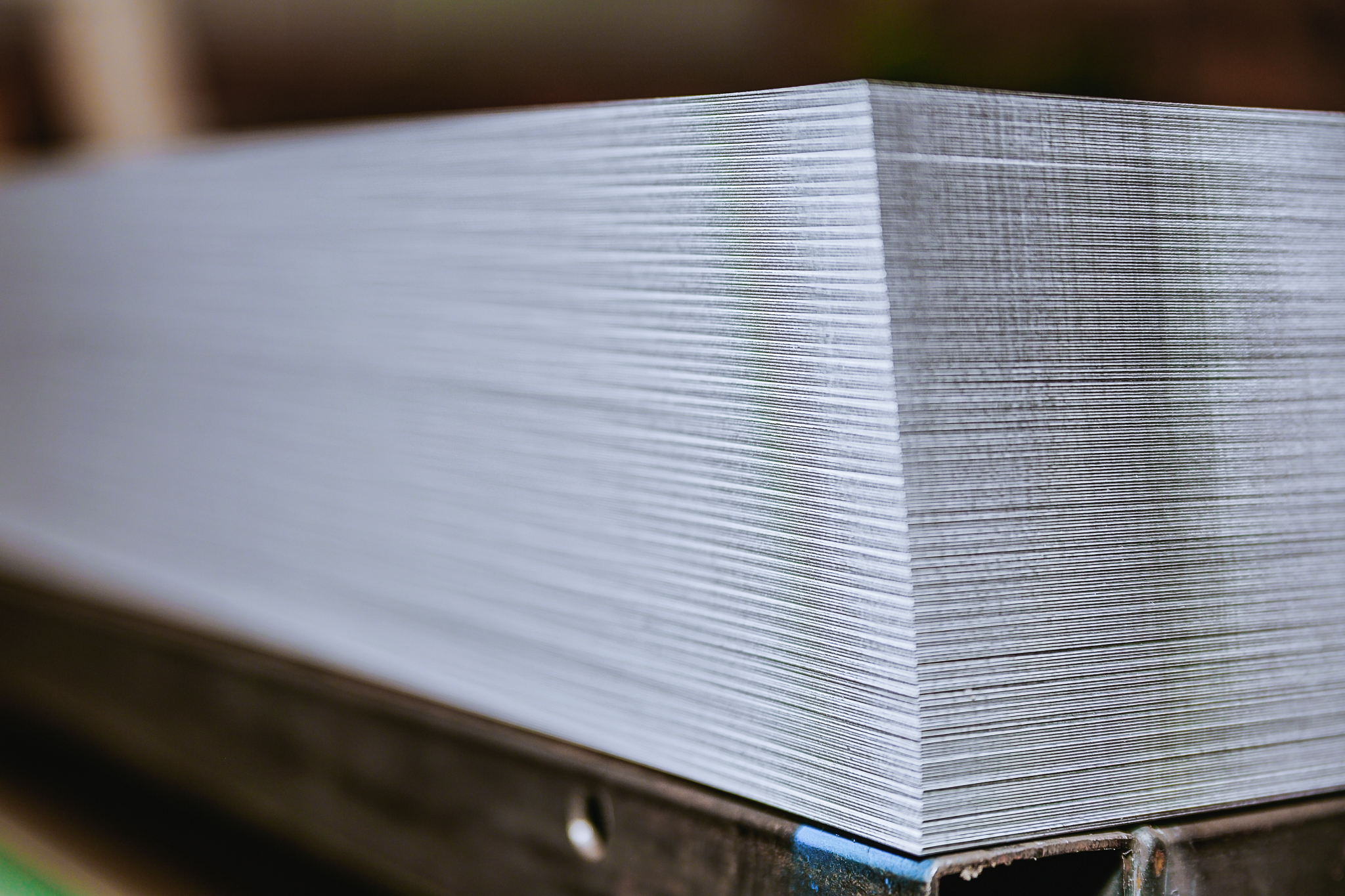

Blanking


Master coil blanking up to 60” an 45,000 lbs, and gauges from .008” to .105”. Sheet lengths from 13” up to 240”
  • Herr Voss 60″ Blanking Line

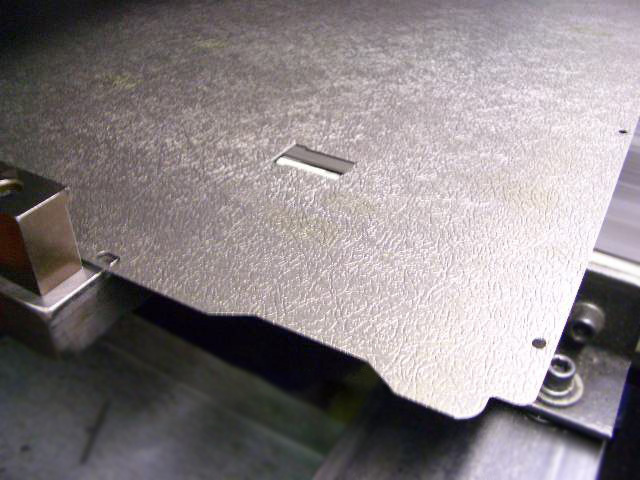

Embossing


Master coil embossing up to 60” and 45,000 lbs, and gauges from .008” to .048”. Sheet lengths from 13” to 240”
  • 60″ Seville (Appliance) Pattern



Tension Leveling


Master coil tension leveling to blanking up to 50″ wide and 120″ max length.
  • Proecho Tension Leveling Line



Precision Leveling


Coil to coil shape correction for edge wave, center buckle, and oil canning
  • Proecho Tension Leveling Line

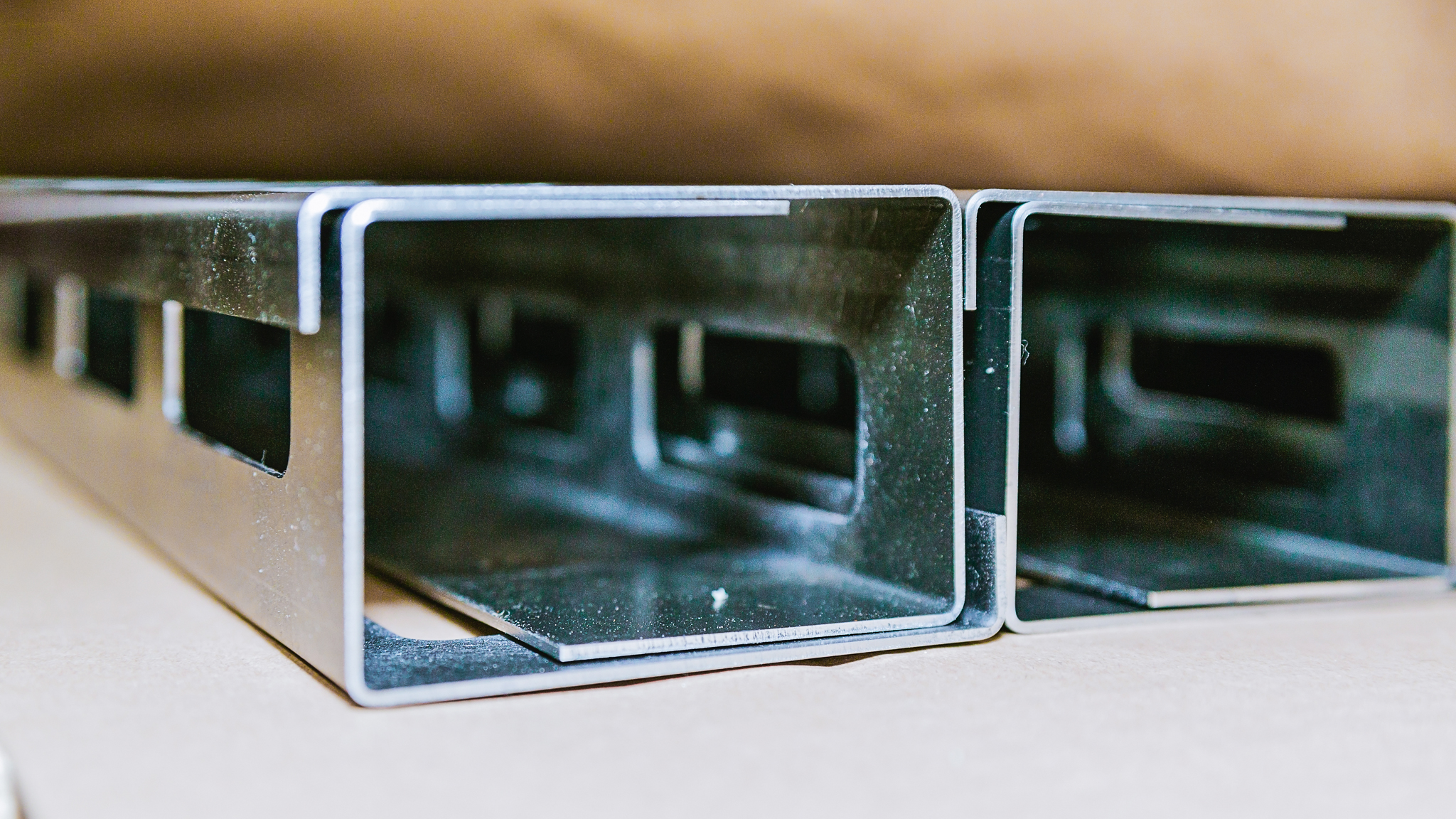

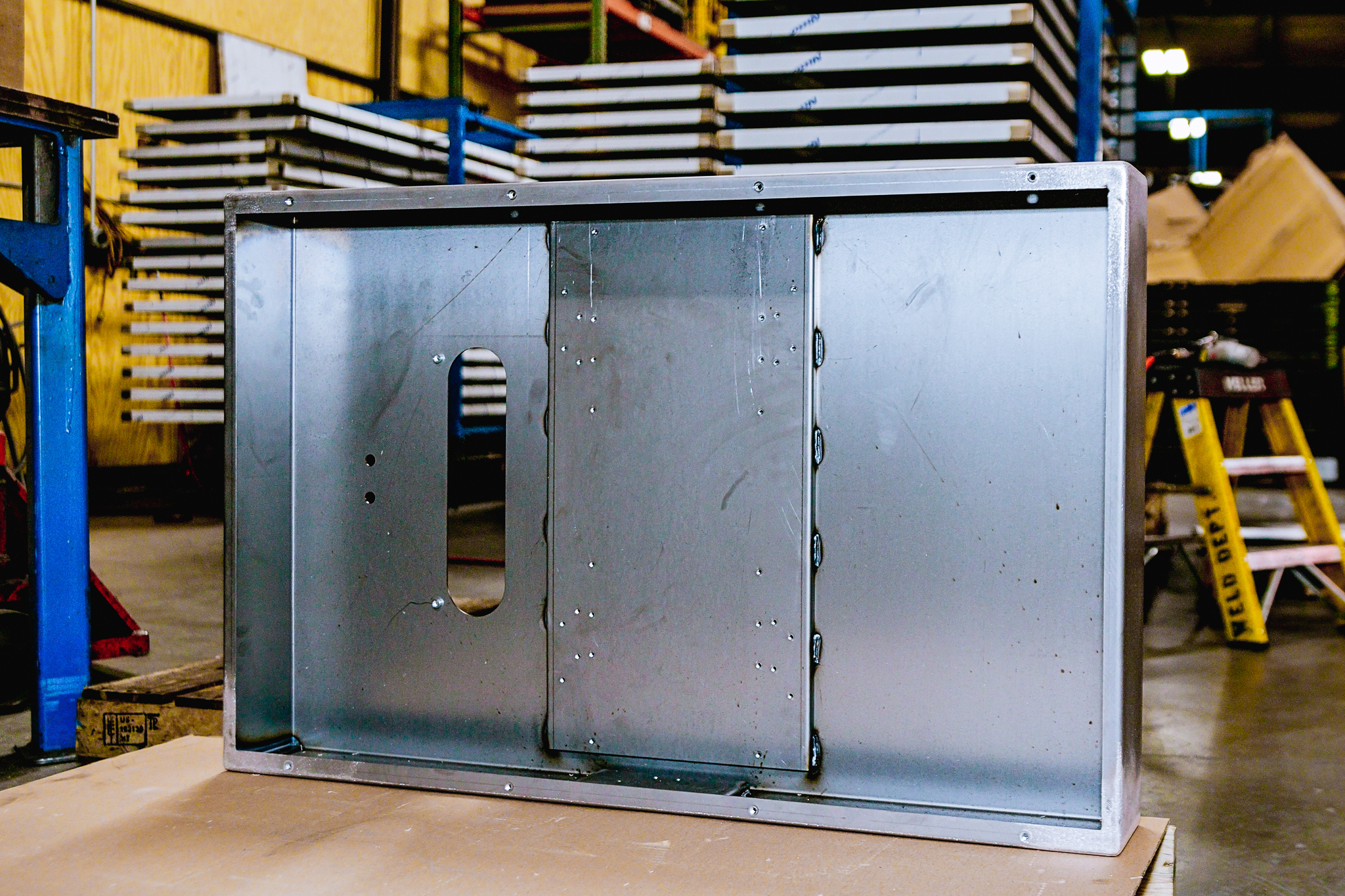

Metal Fabrication

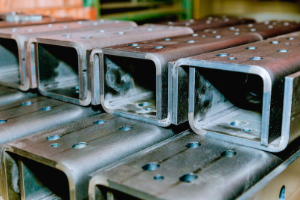

Complete fabrication service from a flat blank to a full assembly
  • Accurpress Press Brake 100 Ton with 8′ bed
  • Safan Darley E-Brake 110 Ton with 10’ bed
  • FinnPower E-Brake 100 Ton with 10’ bed
  • ABB Robotic Welder, Dynamic Robotic Welder
  • Miller Robotic Welder, Cincinnati Cylinder Grinder
  • (2) Pemserter Series 4 Insertion Machines
  • Cincinnati Shear FaroArm EDGE
  • Nikon Coordinate Measuring Machine
  • and more steel fabrication equipment!

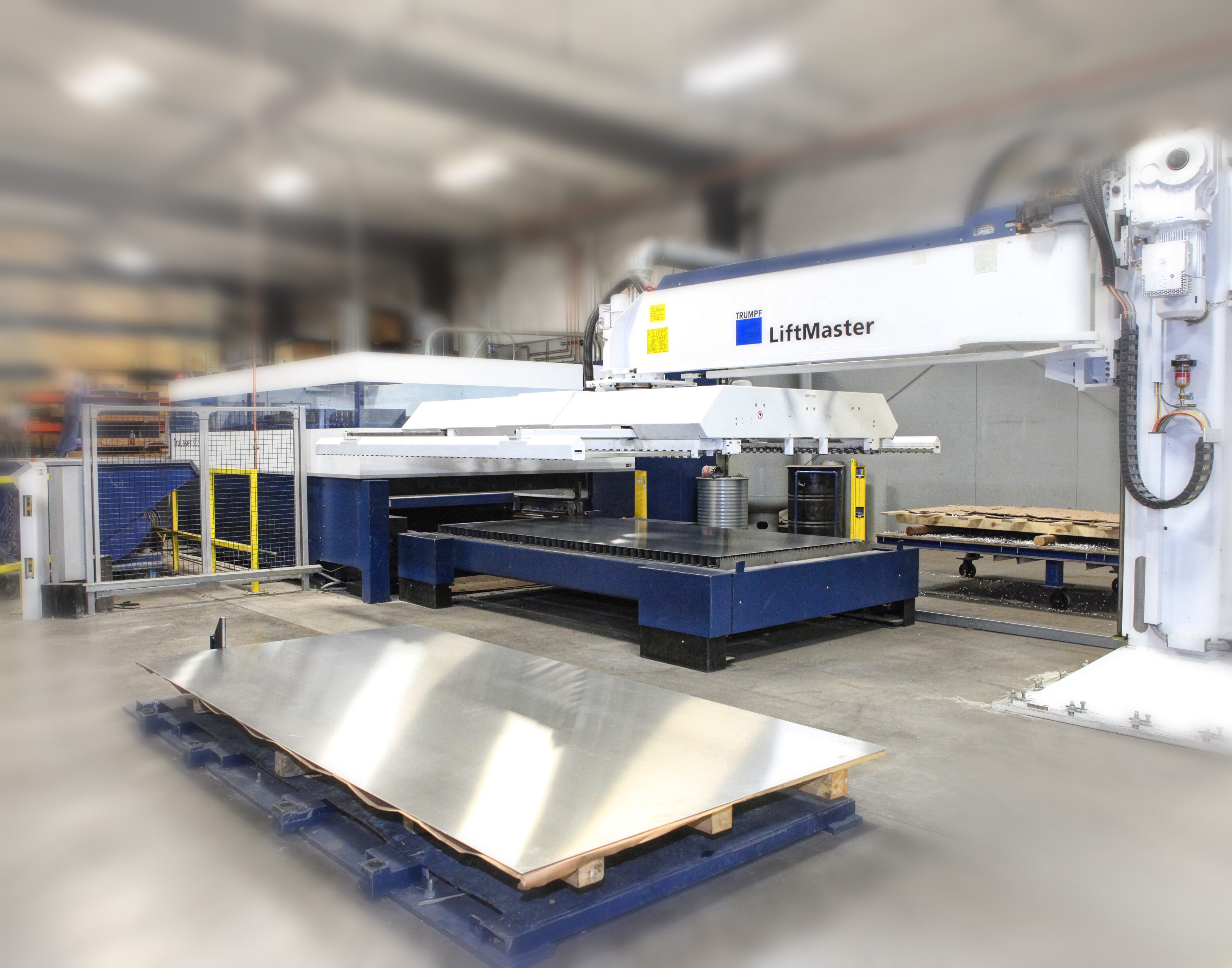

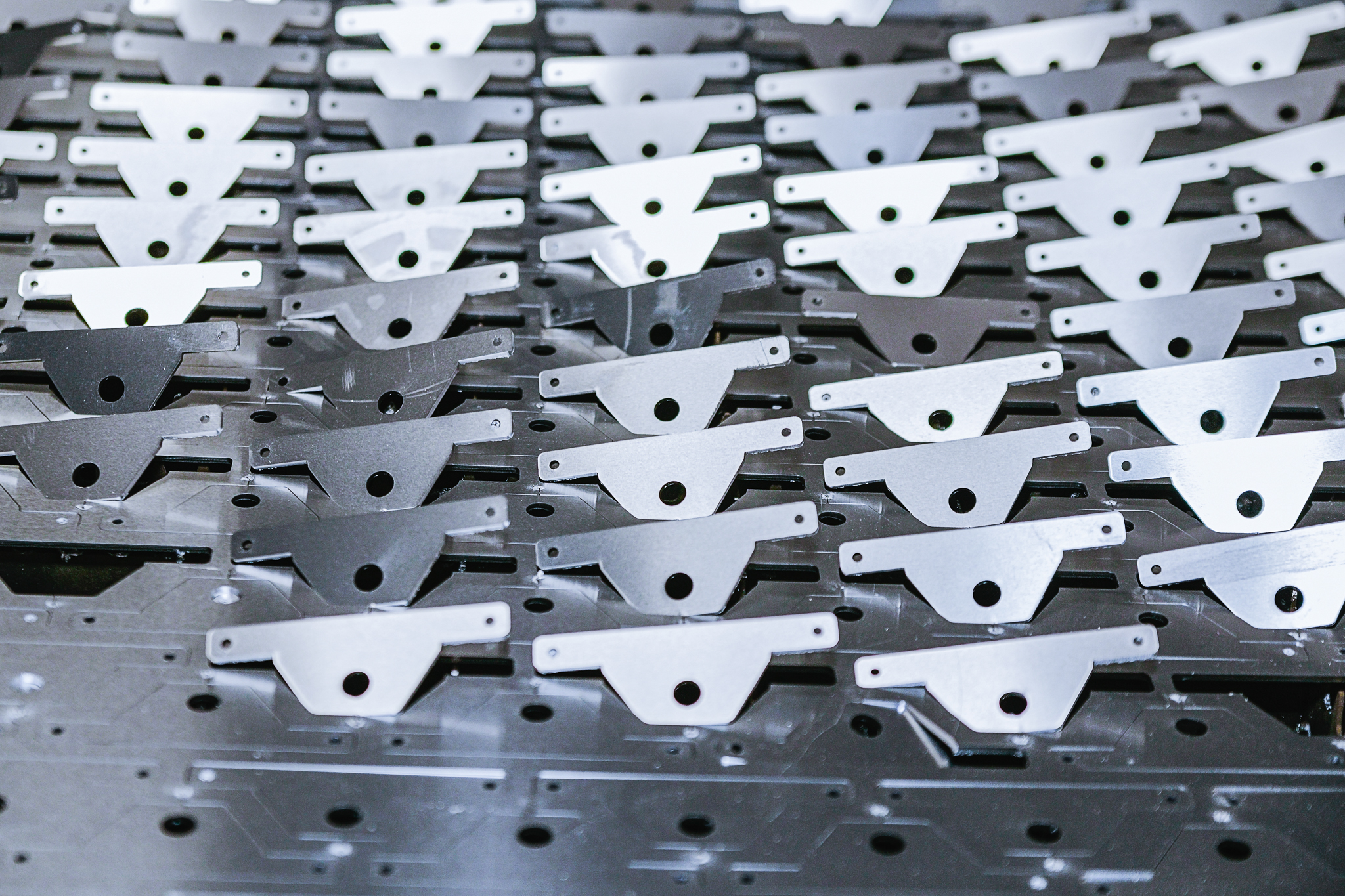

Laser Cutting


Fiber and C02 laser cutting on 60″ x 120″ beds and up to .875″ thick steel and .375″ aluminum.
  • Trumpf 1030 2500kw
  • Trumpf 3030 4000kw
  • Trumpf 2030 Fiber 4000kw

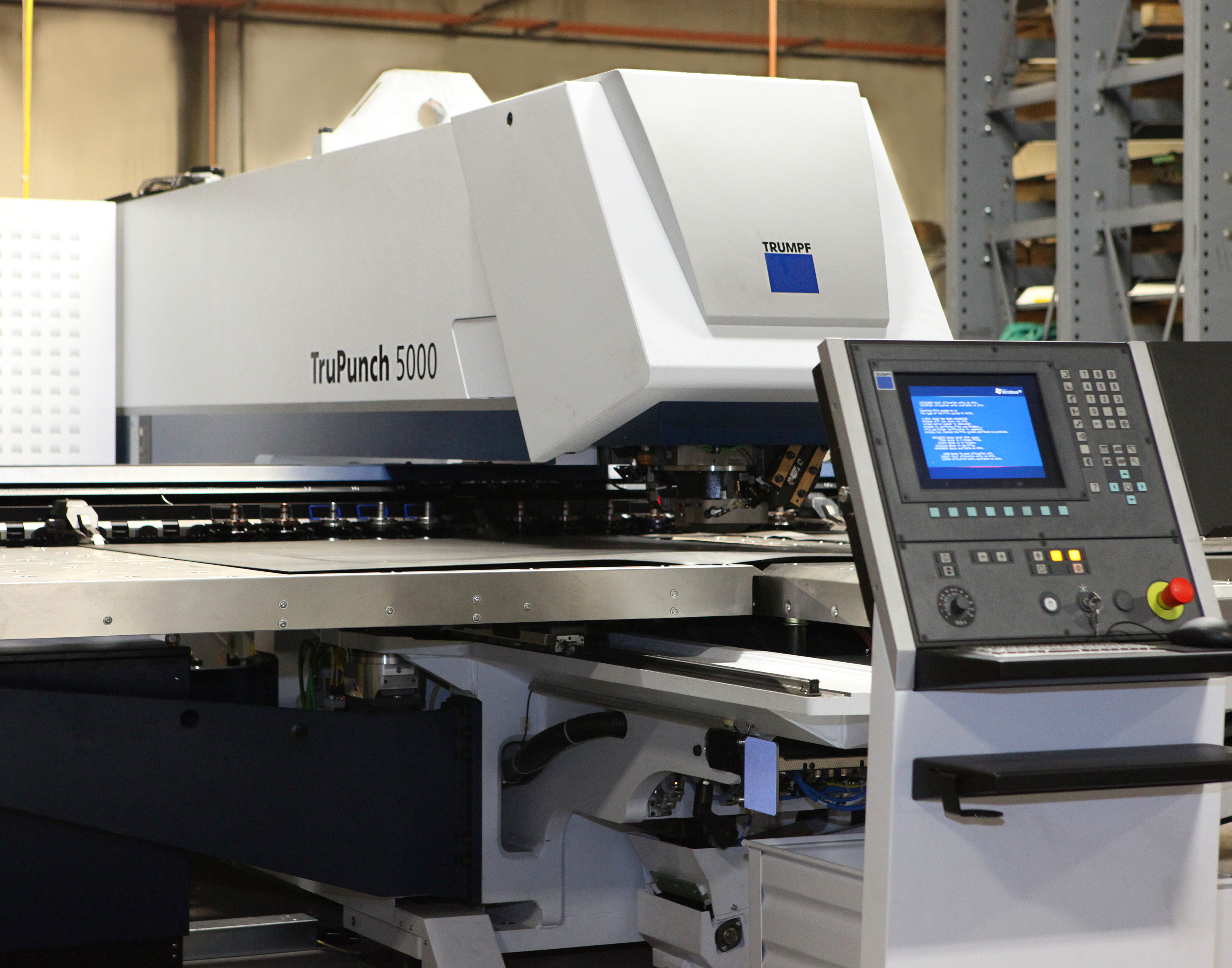

Punching

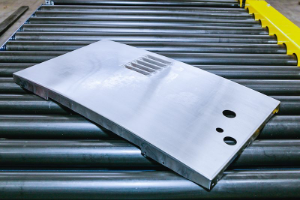

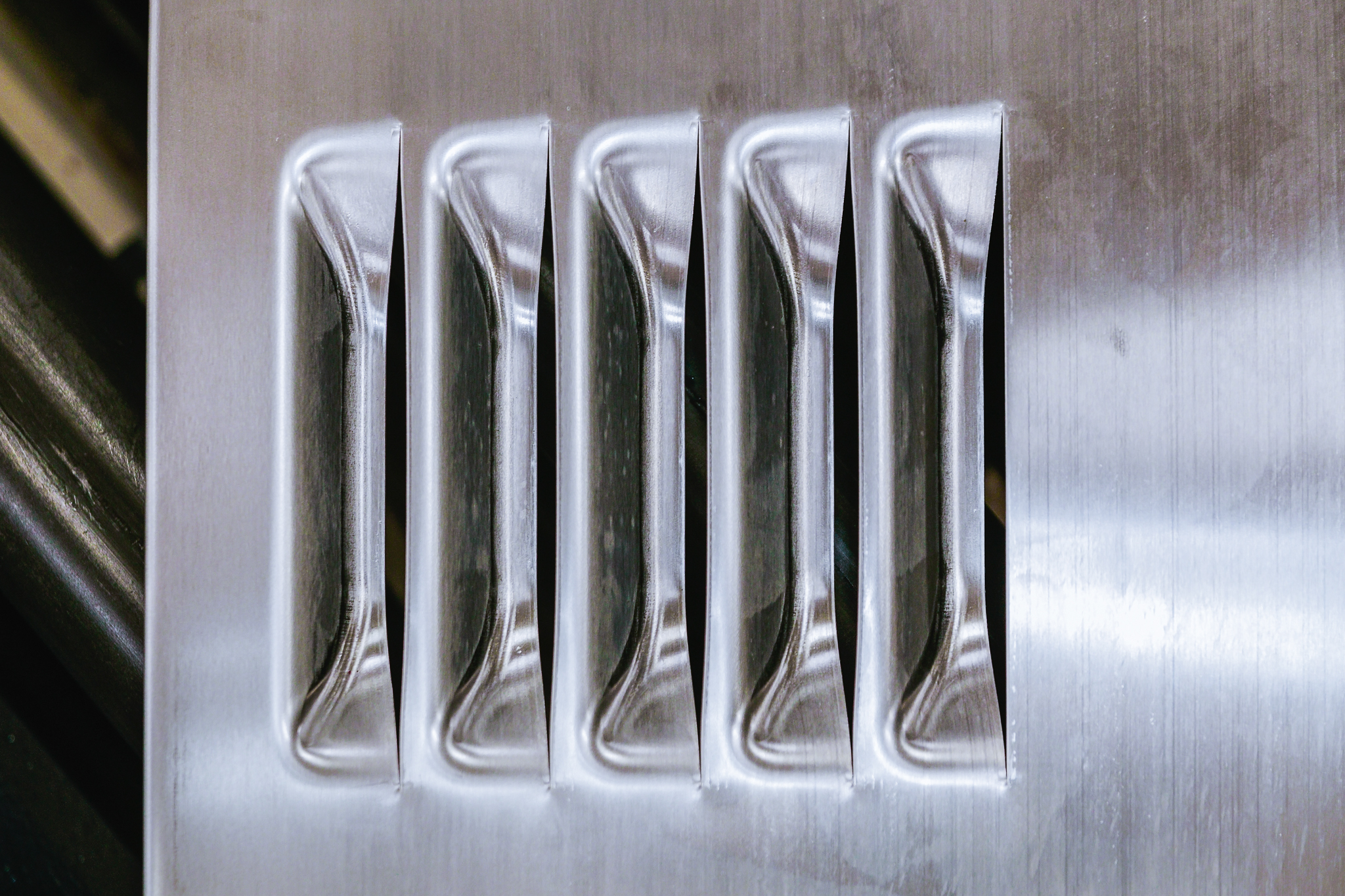

Flexible short run punching offering 3 dimensional shapes such as louvers, tabs, knockouts, and more. Punching on 60″ x 144″ sheets and up to .3125″ steel.
  • Trumpf 5000








Bending

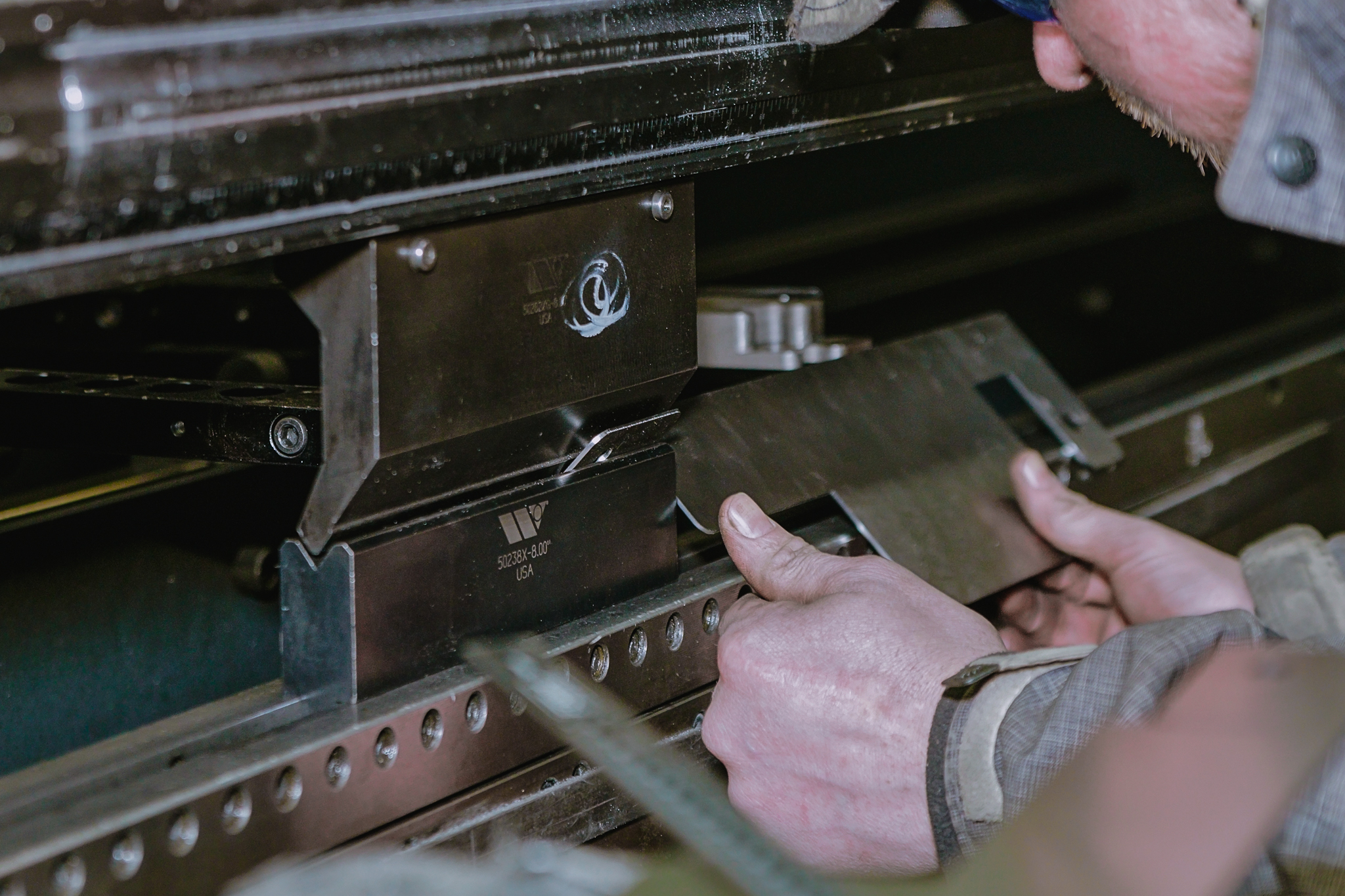

Bending capacity up to 14′ and 320 tons, and gauges .875″ steel and .375″ aluminum.
  • 3-Accupress 60 ton 6′
  • 2-Accupress 60 ton 8′
  • Finn Power 100 ton 10′
  • Safan Darley 100 ton 10′
  • Safan Darley 320 ton 14′

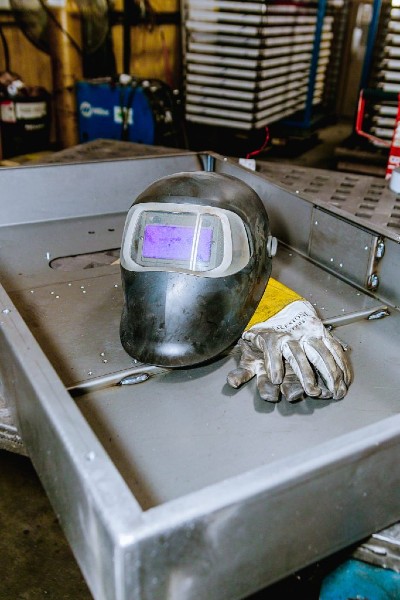

Welding

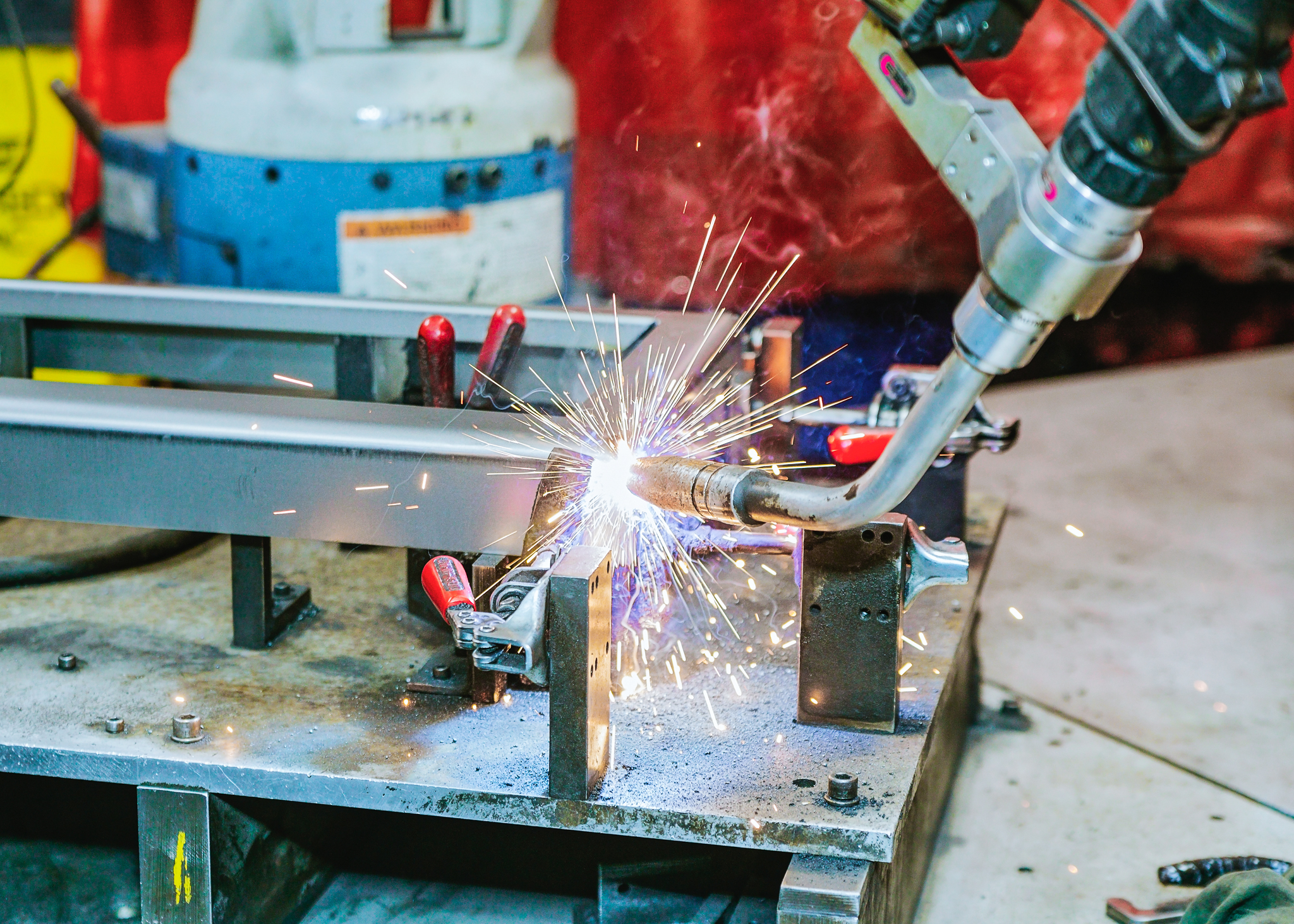

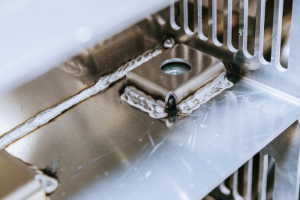

Robotic welding, traditional welding, MIG, and TIG.
  • 4- CNC ABB Robotic Welder
  • 2- Dynamic Robotic Welder
  • 2- Miller/Universal Robotic Welder
  • Multiple Manual Welding Stations
  • Projection Welder





Hardware


CD stud welding and pem insertion.

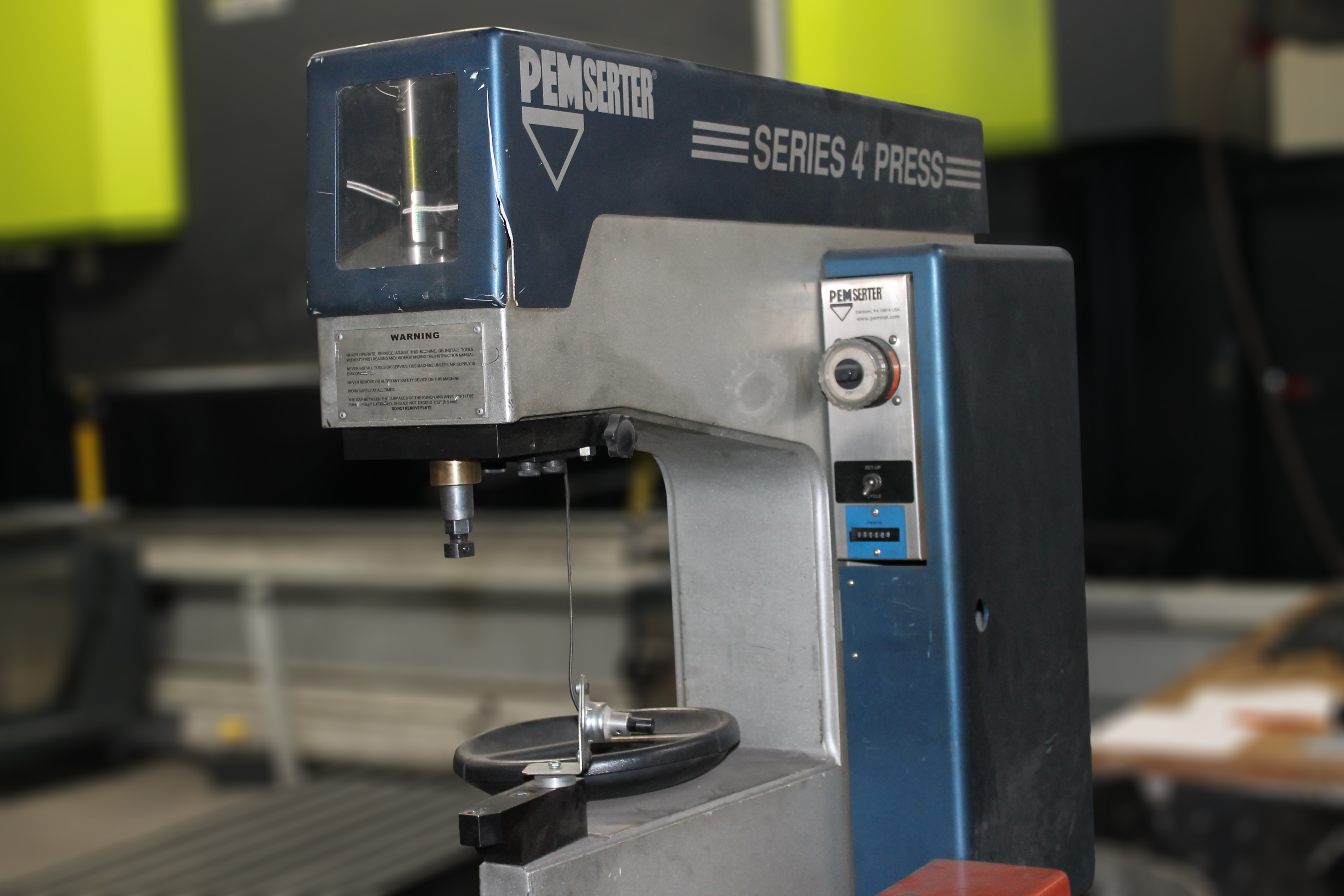

  • 2-Pemserter Series 4
  • 2-CD Stud Welding Machine
  • Projection Welder




Assembly

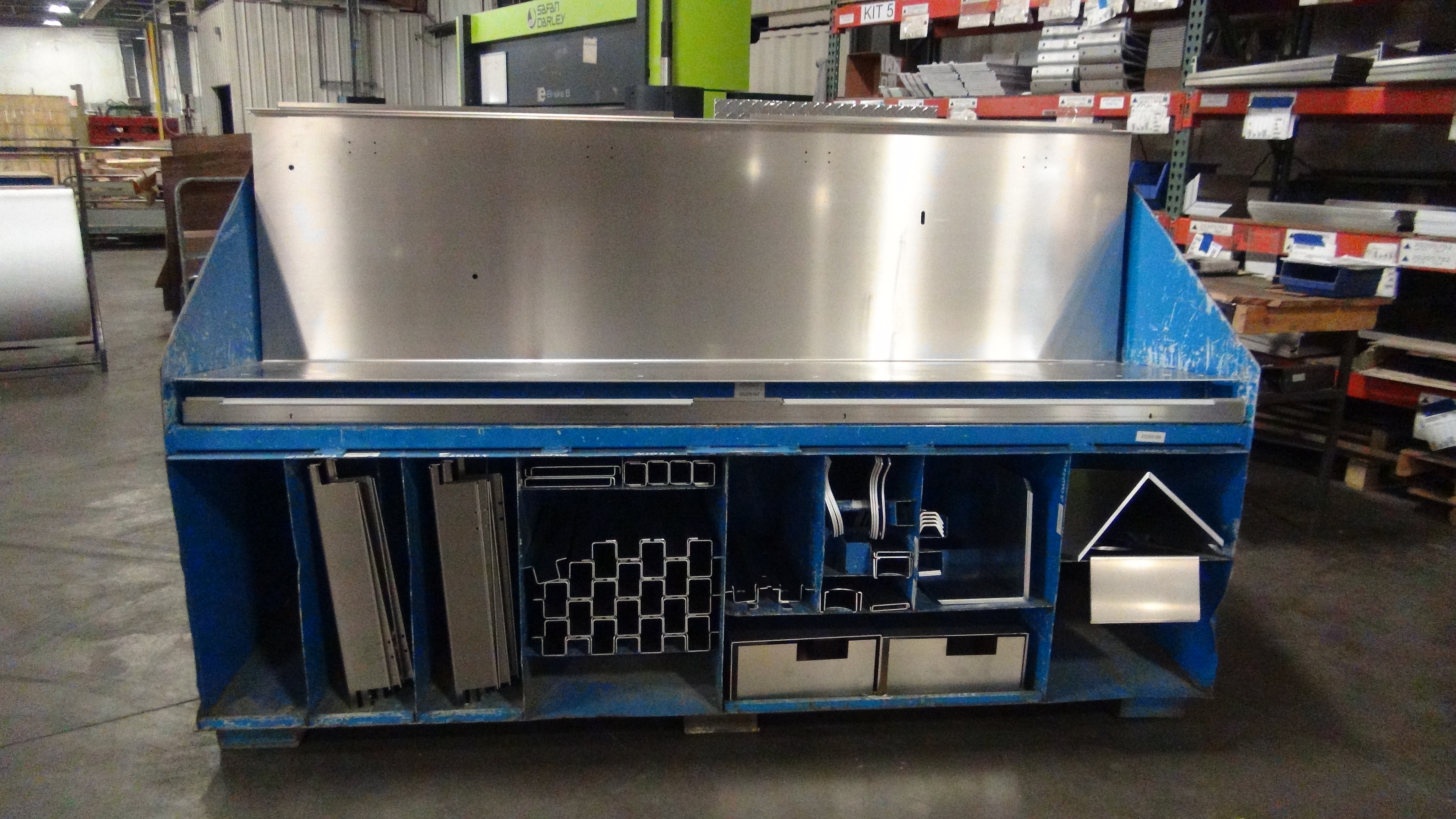

Custom assembly, kitting, and packaging.

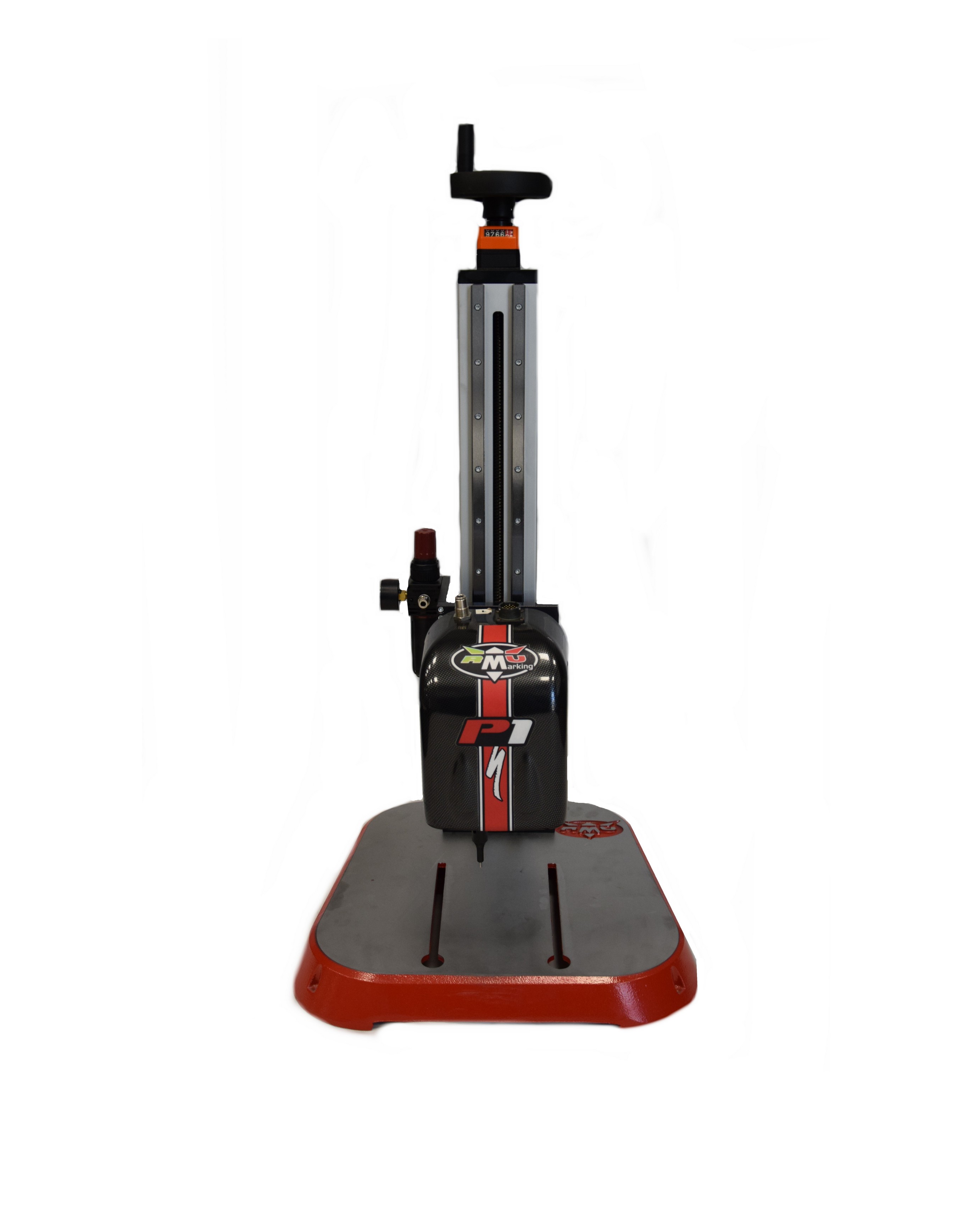

Part Marking

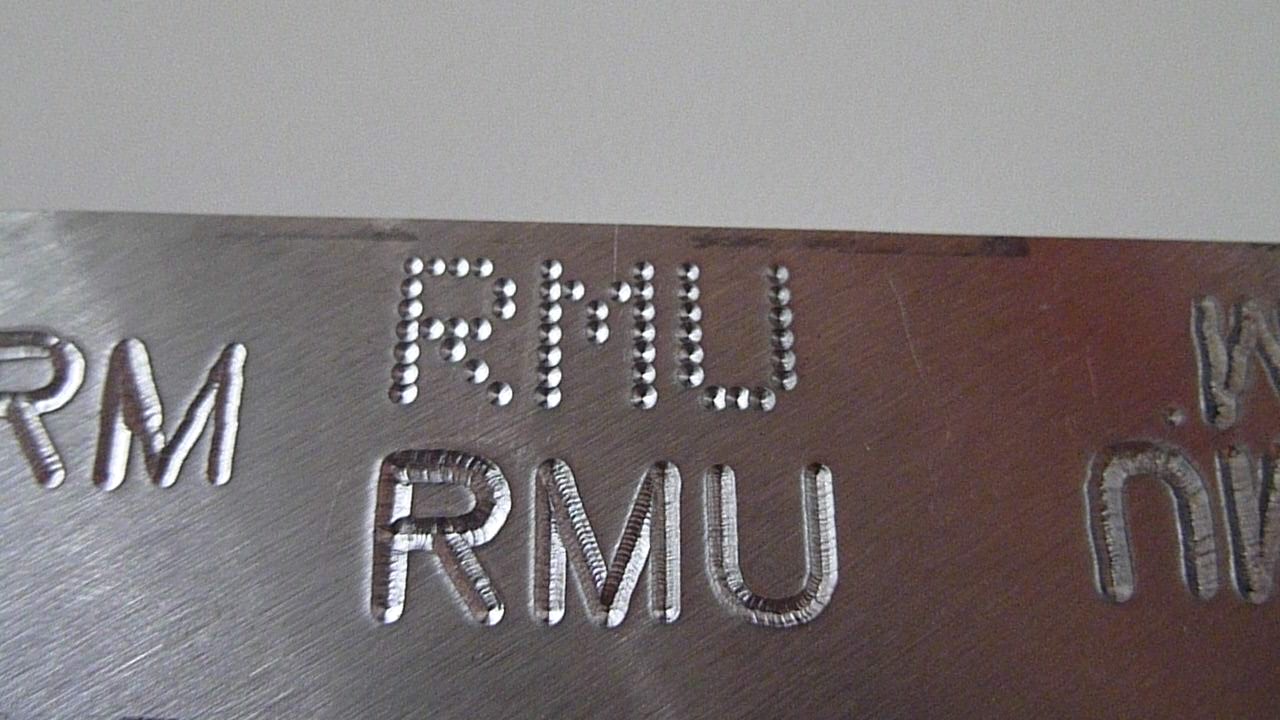

Laser etching and part mark. Get more info.



Coil Fed


Coil fed press lines with tonage up to 2000 tons, part widths up to 42″ and lengths up to 124″.
  • Niagra 300ton, Bed Size 96″ x 48″
  • Minster 500 ton, bed size 84″ x 48″
  • Clearing 1000 ton, bed size 132″ x 84″
  • Williams White & Co 2000 Ton, bed size 42″ x 84″
  • Bliss 22 ton, bed size 23″ x 13.5″
  • Clearing 150 ton, bed size 144″ x 36″
  • Johnson 150 ton, bed size 50″ x 30″
  • Minster 150 ton, bed size 48″ x 60″
  • Chicago 200ton, bed size 84″ x 60″

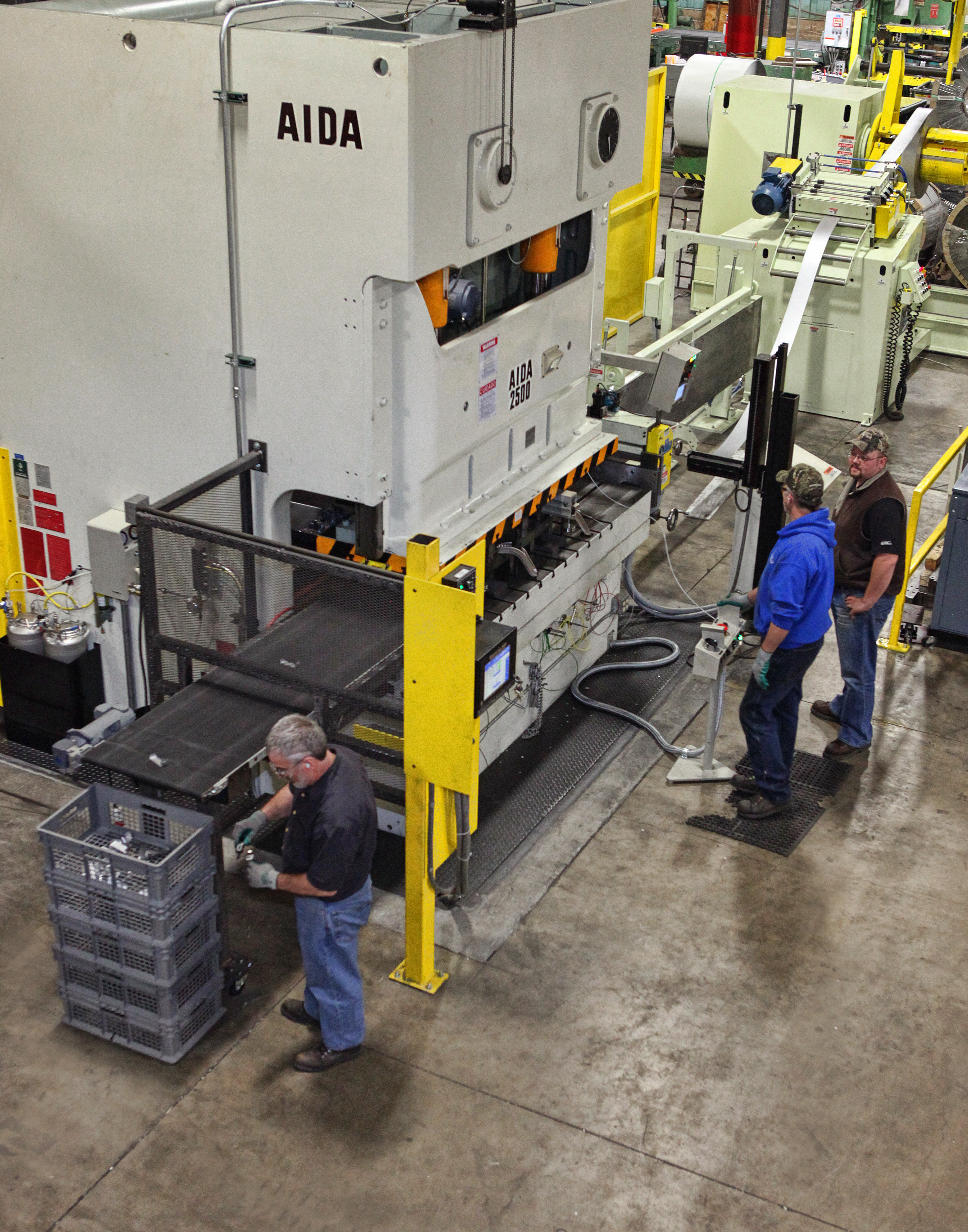

  • Aida 275 ton, bed size 106″ x 36″




Manual Fed


Hand fed and robotic fed stage tool stamping up to 1000 tons, part widths up to 72″, and lengths up to 124″.
  • 2-Heim 300 ton, bed size 108″ x 48″
  • Danly 400 ton, bed size 108″ x 48″
  • Minster 500 ton, bed size 84″ x 48″
  • Clearing 1000 ton, bed size 132″ x 84″
  • Bliss 22 ton, bed size 23″ x 13.5″
  • Clearing 150 ton, bed size 144″ x 36″
  • Johnson 150 ton, bed size 50″ x 30″
  • Minster 150 ton, bed size 48″ x 60″
  • Chicago 200ton, bed size 84″ x 60″
  • Danly 250 ton, bed size 84″ x 48″
  • Warco 250 ton, bed size 96″ x 60″
  • Aida 275 ton, bed size 106″ x 36″

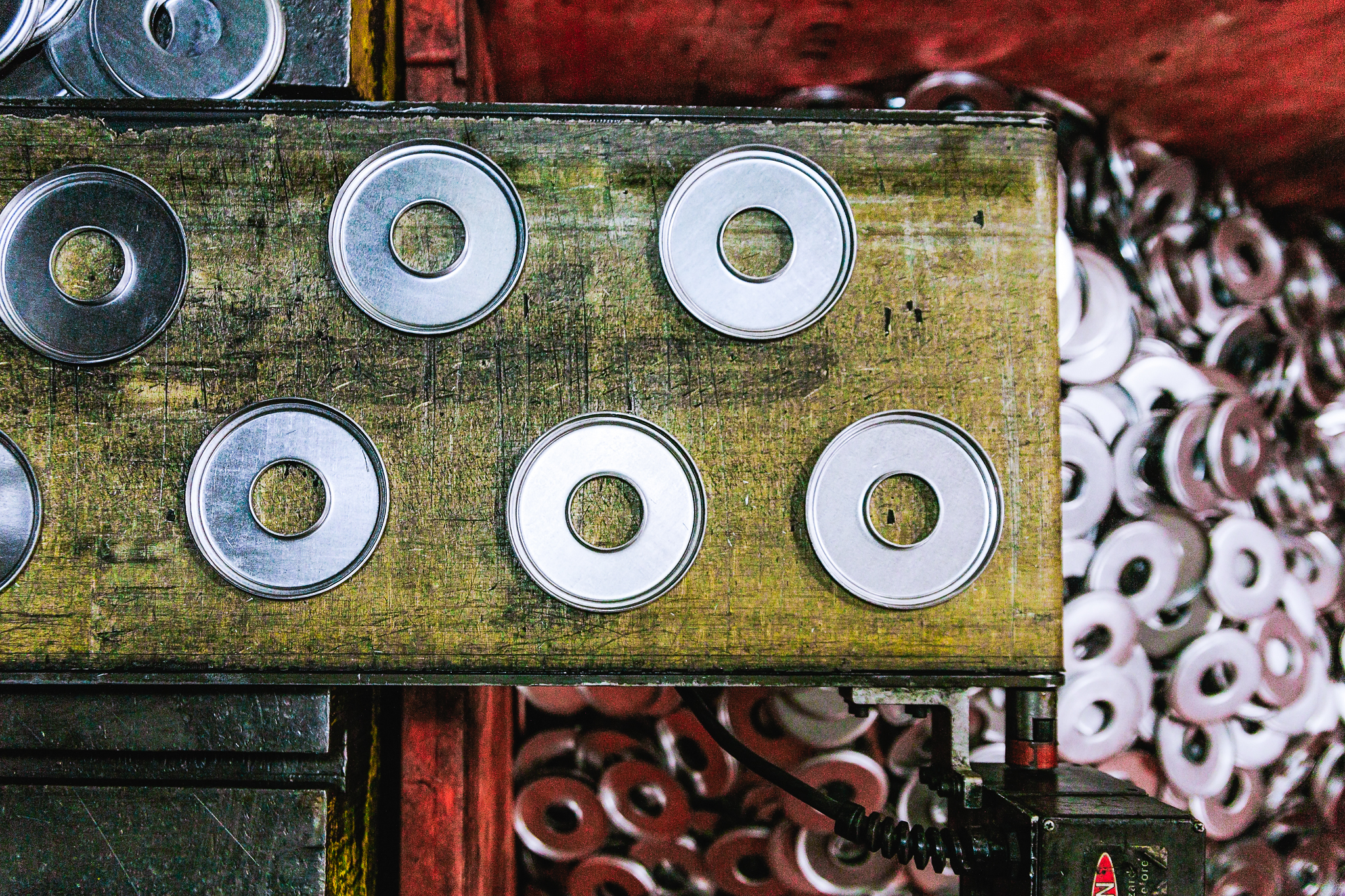

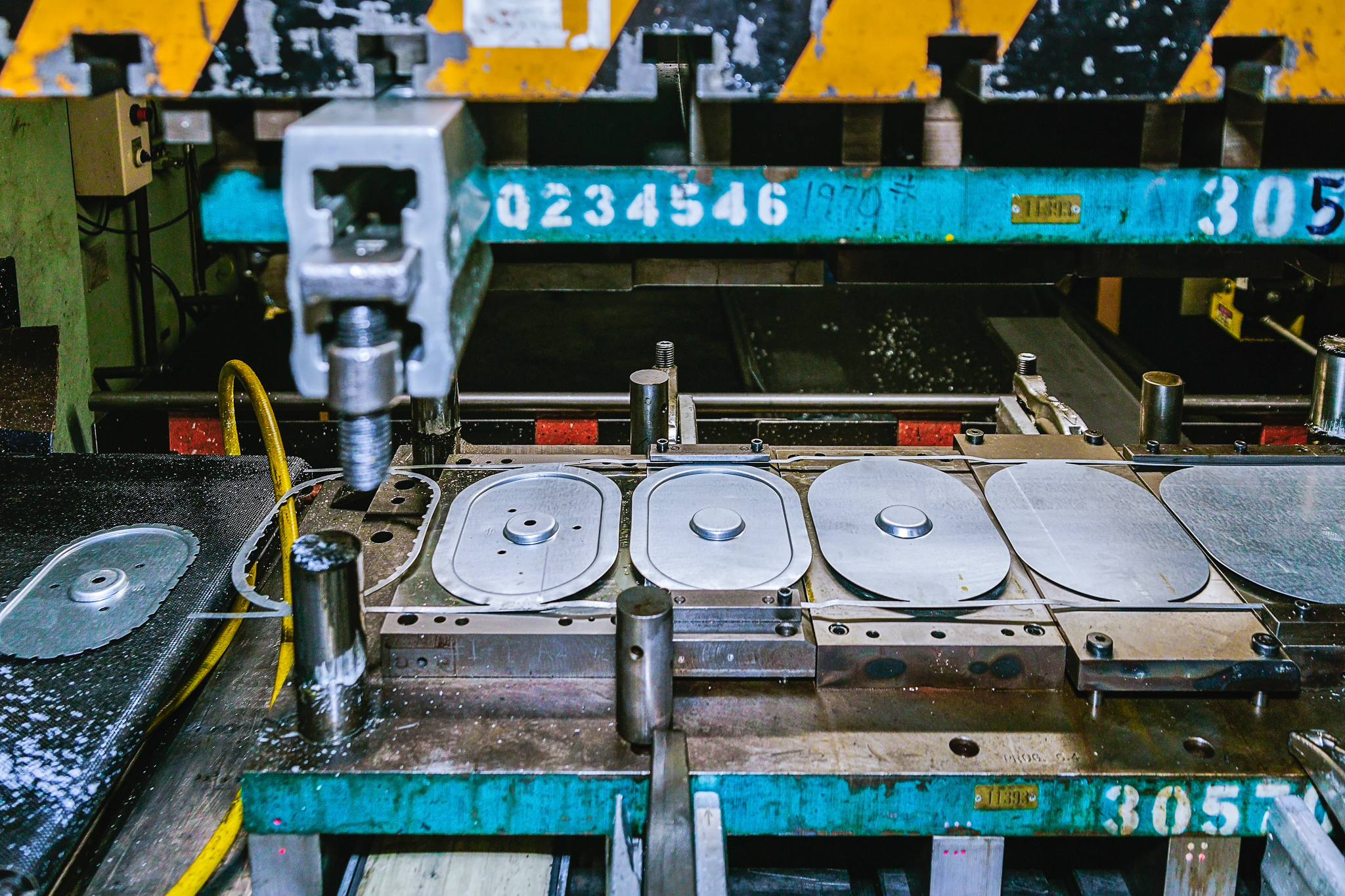

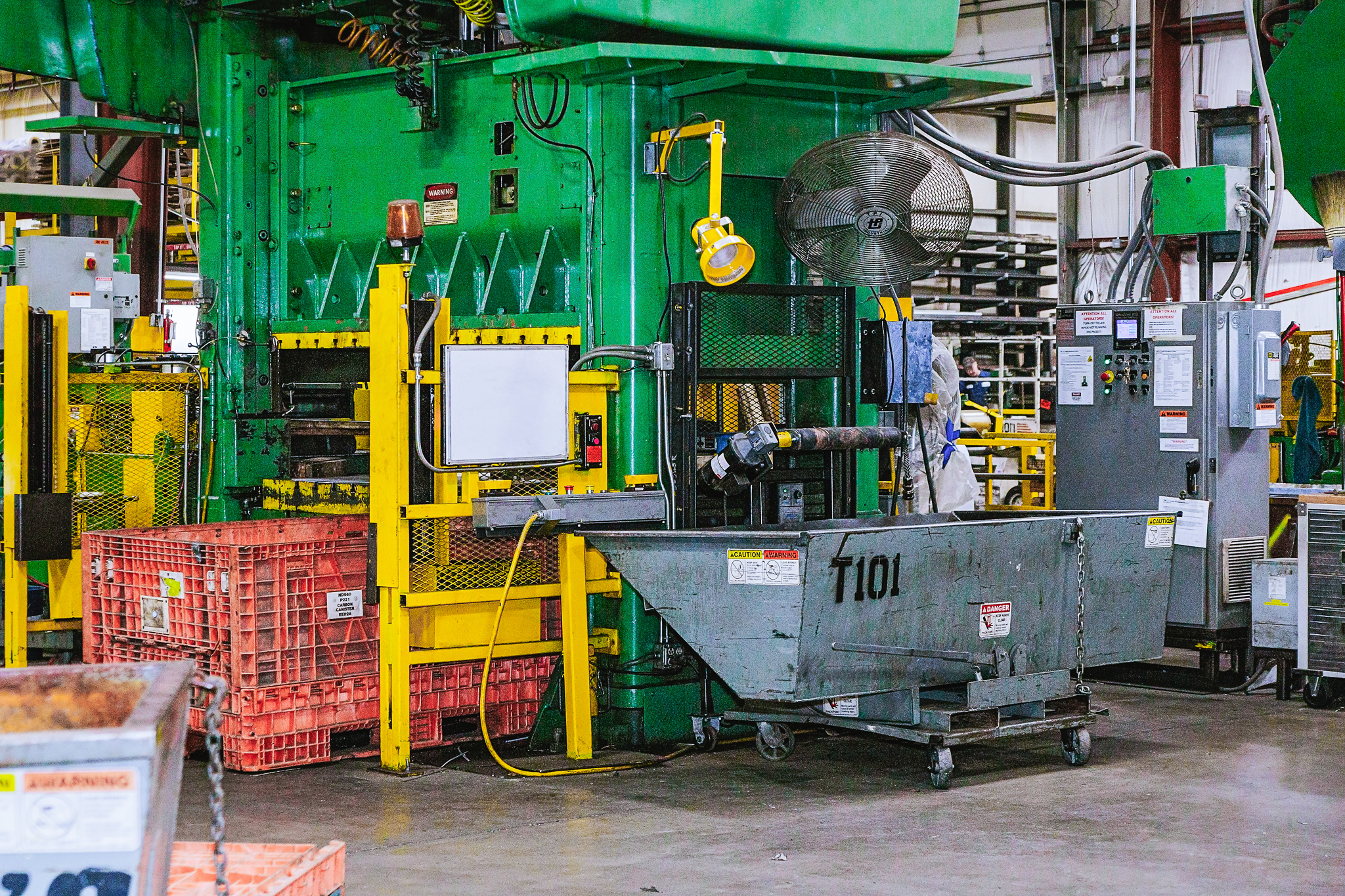

Metal Stamping


From 22 ton to 2000 ton presses, handling gauges from .008″ to .25″.
  • Williams White & Co. 2000 Ton Hydraulic Press
  • Warco 250 Ton Mechanical Press
  • Aida 276 Ton Mechanical Press
  • Niagara 300 Ton Mechanical Press
  • (2) Heim 300 Ton Mechanical Presses
  • Danly 400 Ton Mechanical Press
  • Minster 500 Ton Mechanical Press
  • Clearing 1000 Ton Mechanical Press
  • and more!

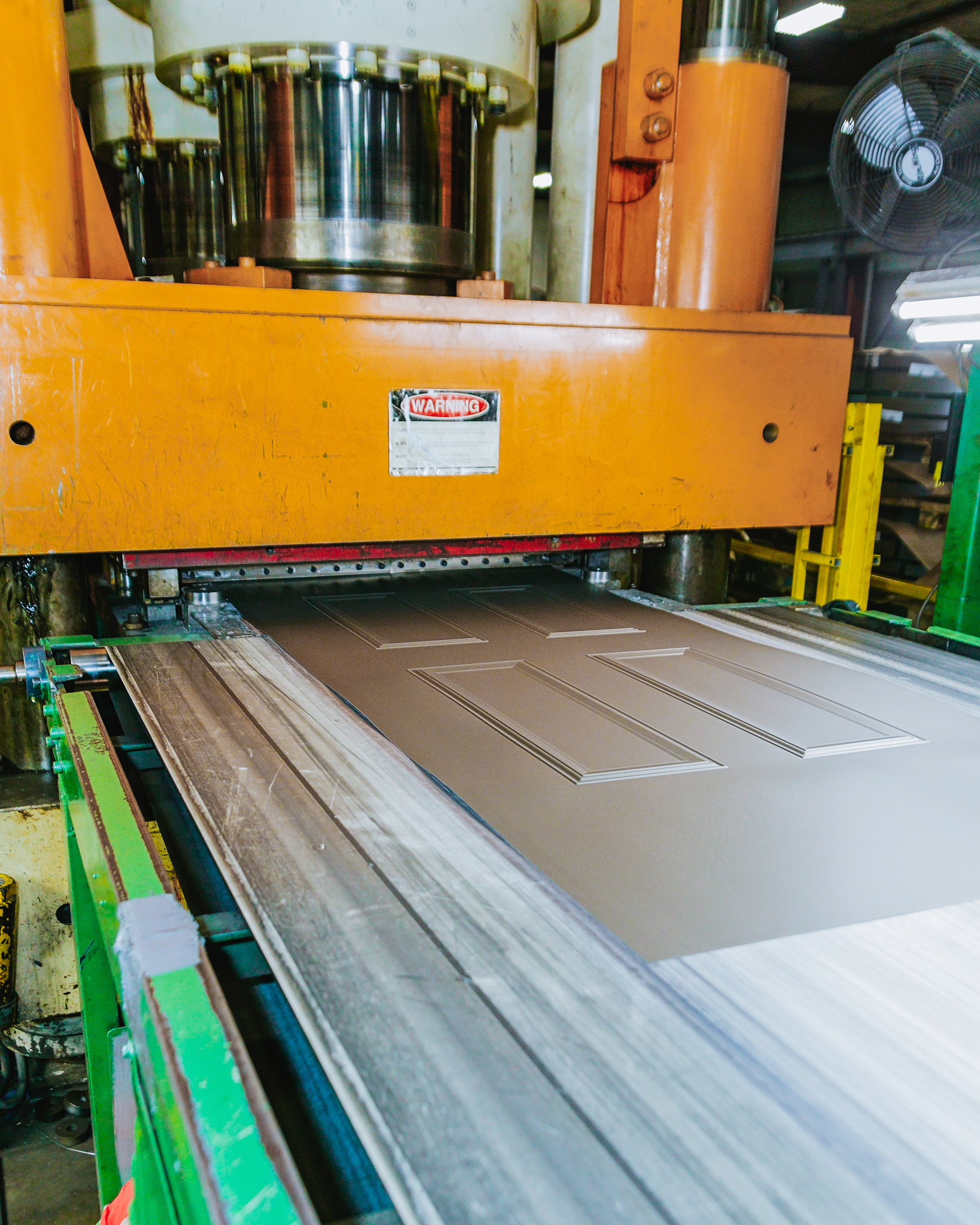

Door Skin Stamping


High definition and low definition panel patterns. Panel configurations of: 2, 3, 4, 6, 8, 9, and flush with strippable application if needed.
  • Williams White & Co 2000 Ton
